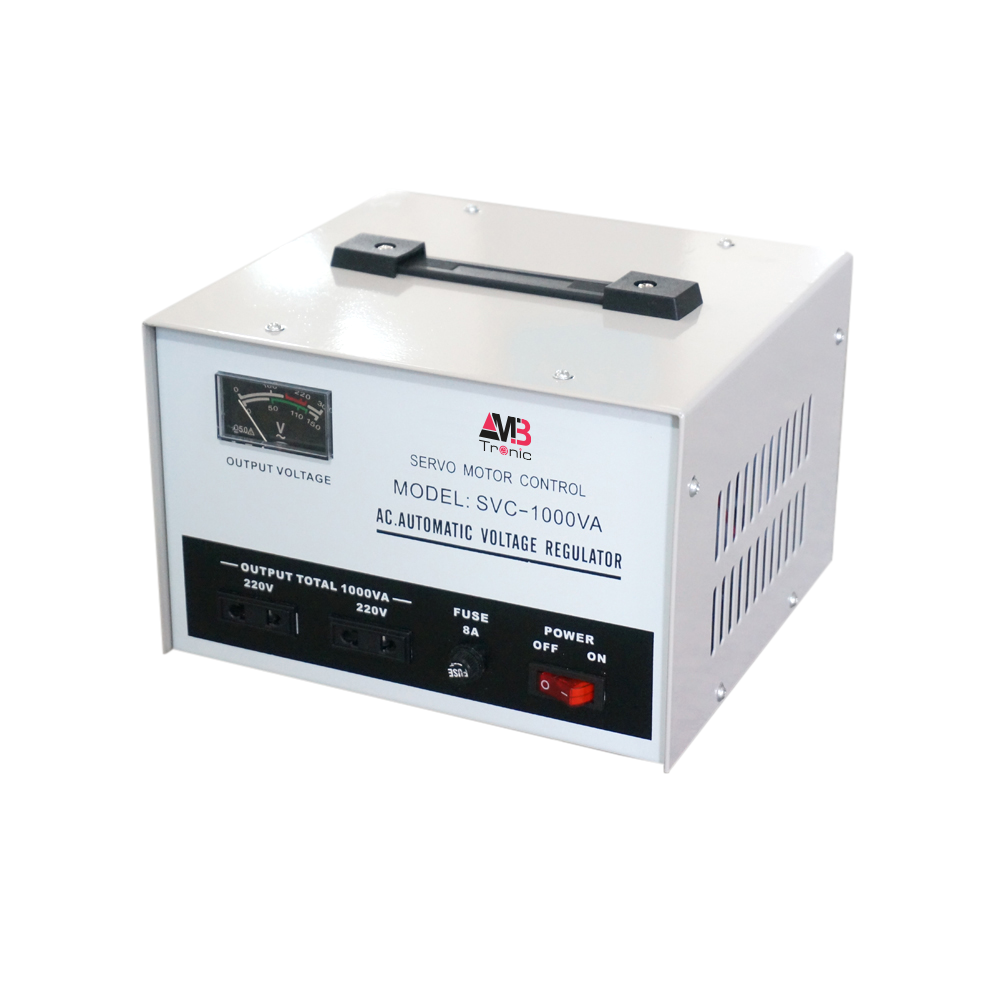

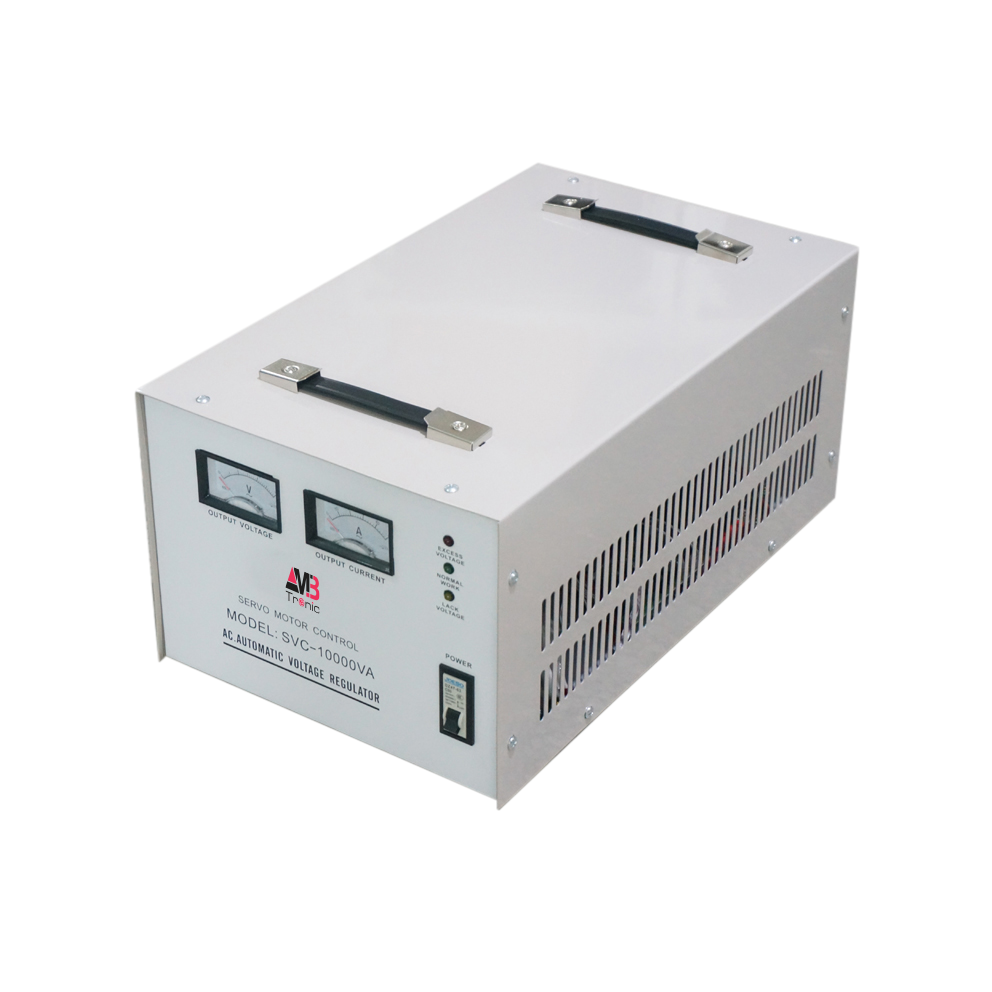

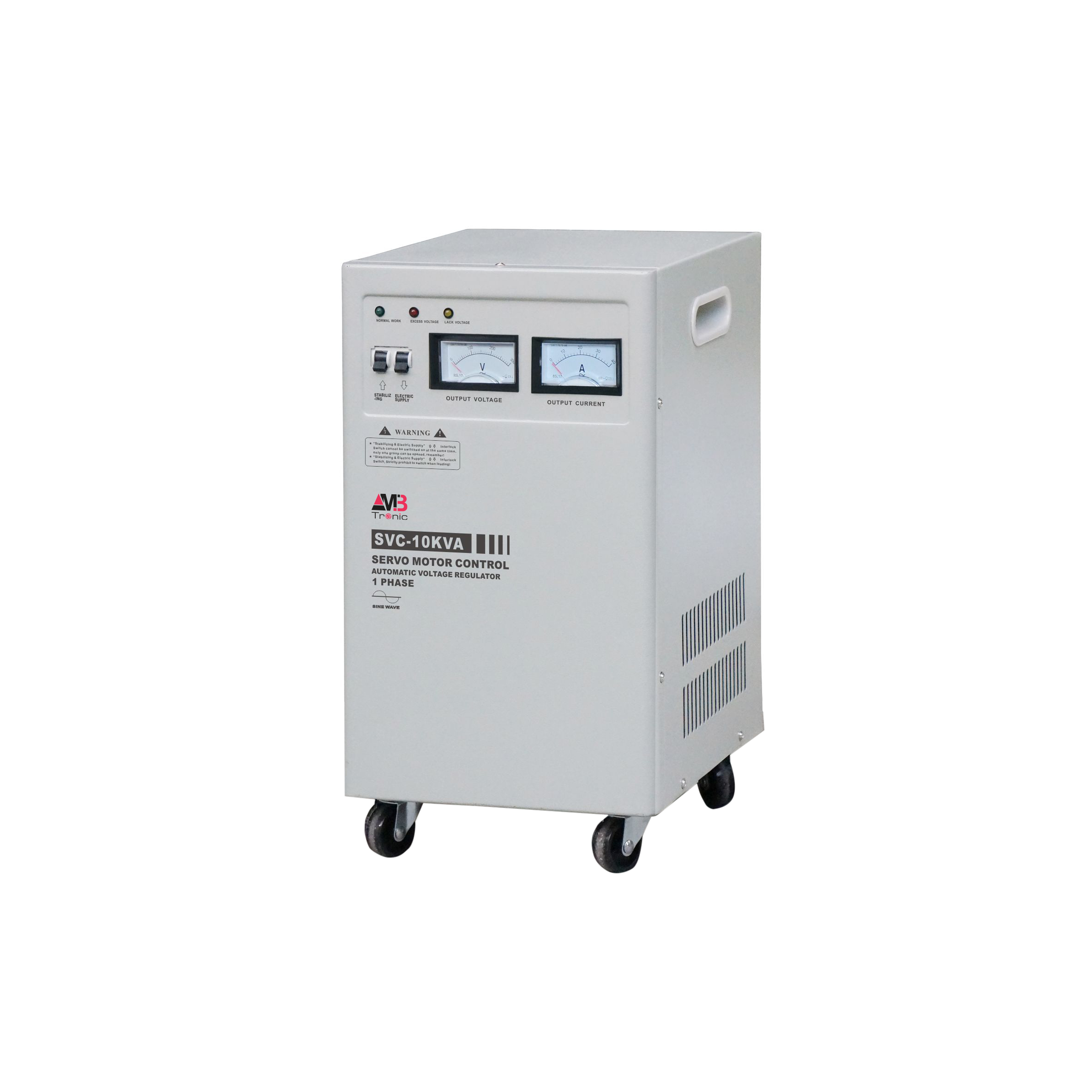

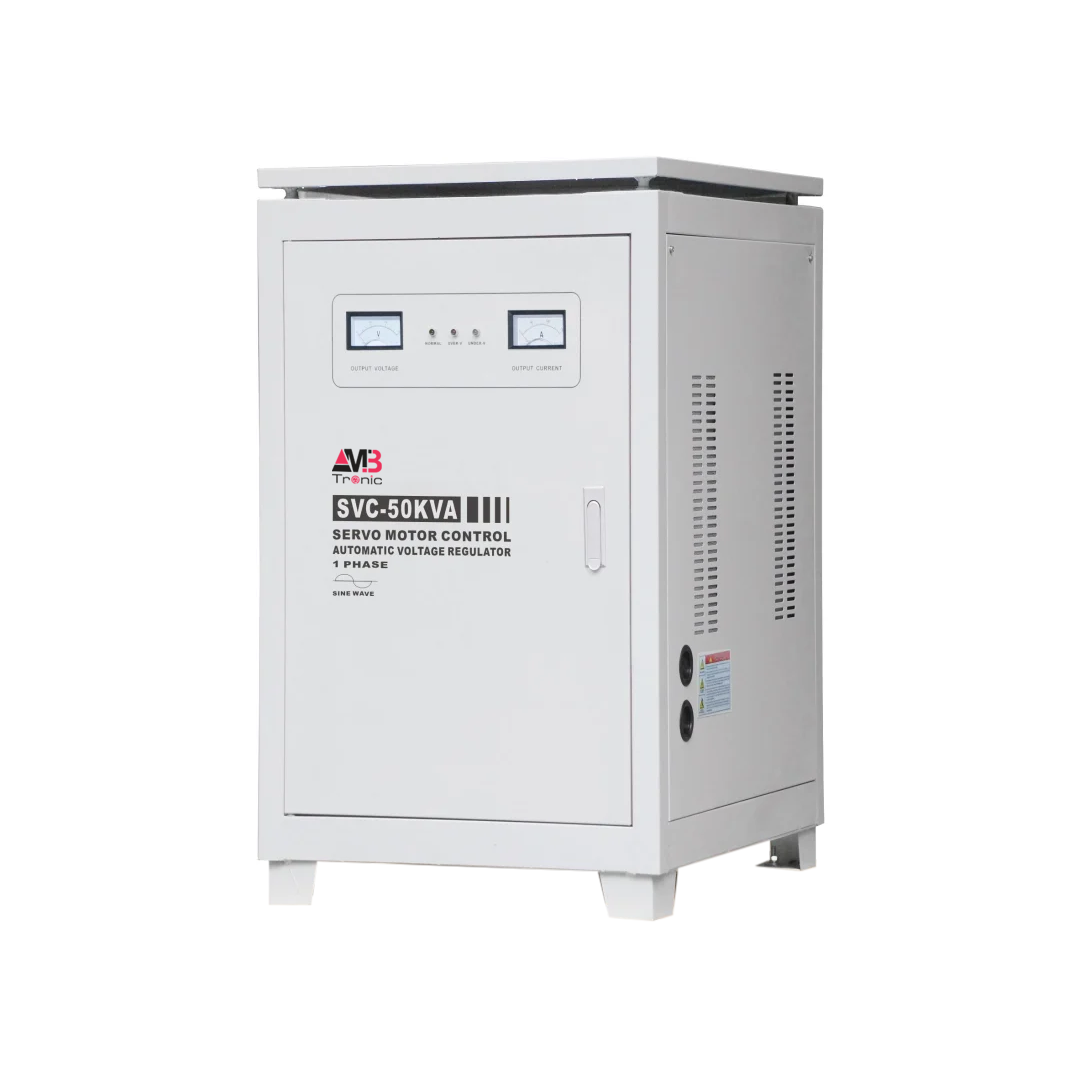

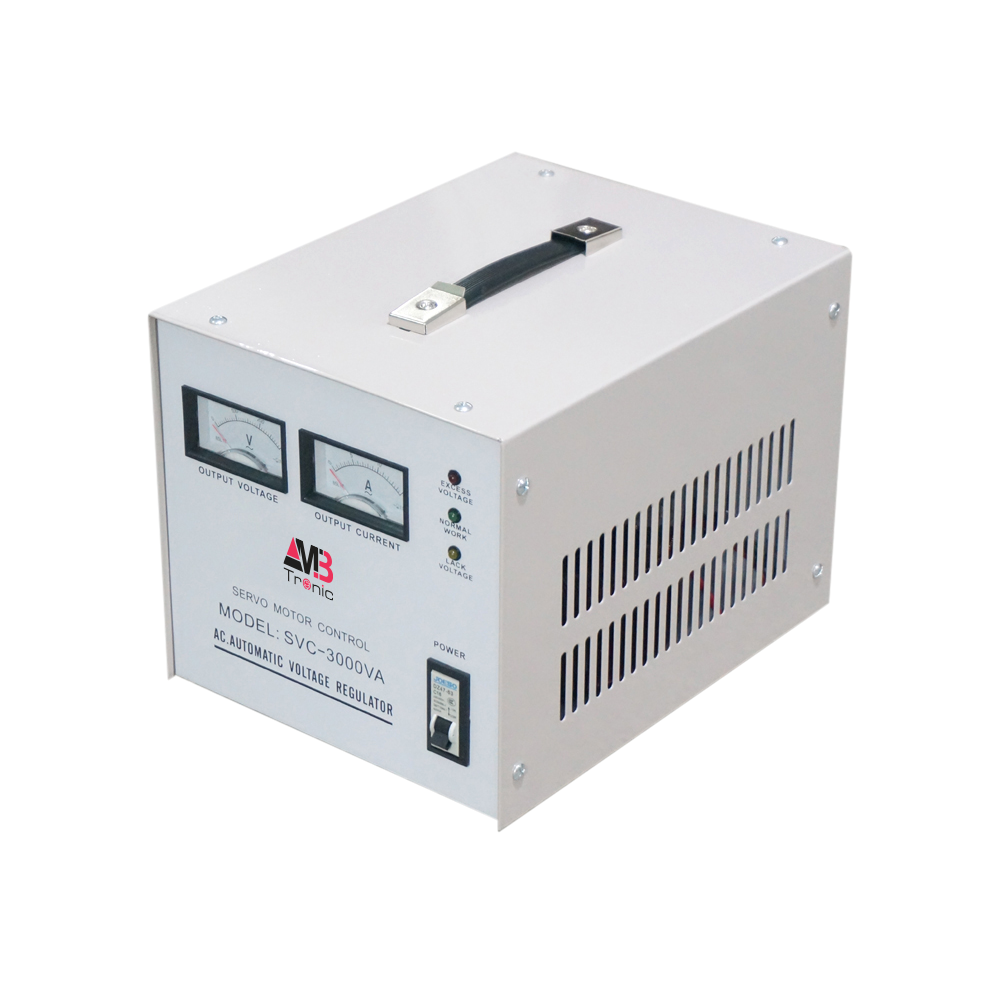

SVC-0.5KVA—60KVA 1Phase

Download flyer



The series product is a servo-motor type high accuracy household voltage stabilizer. Low power consumption, reliable work, high accuracy of stabilization, and good for use in regions where the net voltage is much fluctuating.



Computer, Testing equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and home appliance etc.


Technical specifications:

Phase No: Single phase
Input Voltage 160V~250V
Output Voltage 220V,110V(0.5~3KVA)
Output Accuracy 220V ±2.5%, 110V ±5%
Frequency 50Hz/60Hz
Efficiency >90%
Response Time ≤1.5s(against 10% input voltage deviation)
Ambient Temprature -10°C~+40°C
Relative Humidity <95%
Insulation Resistence >2 ΜΩ
Withstand voltage 1500V/min.
Overload Double rated current, one min.
WaveFoam Distortion No additional waveform distortion
Protection function Over-voltage, under-voltage, over-load, short circuit, time delay etc.
